Floorplan - 2015 Winnebago Vista 35F
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+114- Your Price: $74,950
- MSRP: $89,950
- Discount: $15,000
-
Sleeps 6
-
2 Slides
-
Bath and a Half
-
35ft Long
-
Sonoma, Four Seasons, Pecan Fr

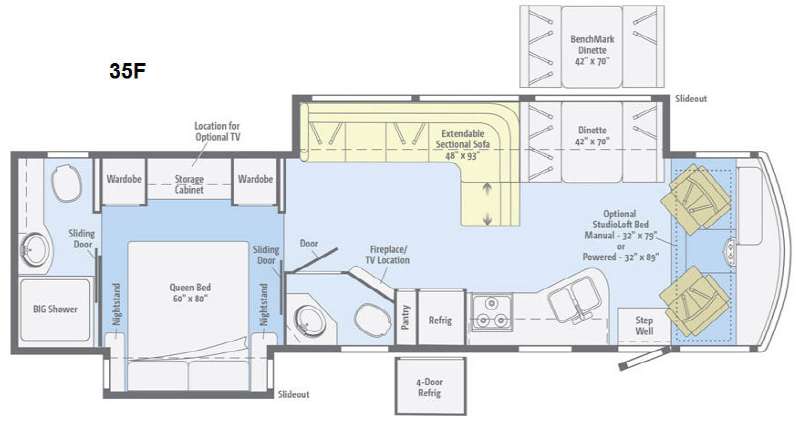

35F Floorplan
Specifications
| Sleeps | 6 | Slides | 2 |
| Length | 35 ft 5 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 5 in | Int Height | 6 ft 8 in |
| Interior Color | Sonoma, Four Seasons, Pecan Fr | Exterior Color | Arctic Silver, Cayenne, Cream, |
| Hitch Weight | 5000 lbs | GVWR | 22000 lbs |
| Fresh Water Capacity | 74 gals | Grey Water Capacity | 51 gals |
| Black Water Capacity | 62 gals | Tire Size | 22.5" |
| Furnace BTU | 40000 btu | Generator | 5500 |
| Fuel Type | Gas | Miles | 24157 |
| Engine | 362 Hp 6.8L Triton | Chassis | Ford F53 |
| Horsepower | 362 hp | Fuel Capacity | 80 gals |
| Wheelbase | 228 in | Available Beds | 3 |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | Large | Number of Awnings | 1 |
| LP Tank Capacity | 18 | Water Heater Capacity | 6 gal |
| Water Heater Type | 6 gal | AC BTU | 14800 btu |
| Gross Combined Weight | 26000 lbs | Shower Type | Standard |
| Electrical Service | 50 amp | VIN | a03812 |
Description
Two slides, and a bath and a half are the highlights of this Winnebago Vista class A coach 35F.
As you enter notice the large slide out opposite the door that features a dinette and extendable sectional sofa. You can also choose the BenchMark Dinette instead. All feature seat belts so you can safely travel in the back of the coach.
To the left of the entry door there is a kitchen which will make it easy to prepare and cook food for your family. There is a double sink, counter area, three burner range, refrigerator, and pantry. A 4-door refrigerator option is also available.
Across from the sectional sofa find a 1/2 bath with an angled wall that features a 39" HD TV and fireplace. You can choose a 40" HD TV if you like.
A sliding door leads to the rear master suite and full bath. The bedroom provides a slide out queen size bed with nightstands and overhead storage. The opposite wall features a storage cabinet in the center of two wardrobes, plus it is the location of an optional 32" HD TV.
A second sliding door leads into the rear master bath which features a BIG shower, vanity with counter and sink, plus toilet, and so much more!
Features
- Interior Upgrade Package (NA 26HE, 31KE) soft vinyl ceiling, galley backsplash, flip-up countertop extension (NA 27N, 36Y), Dream Dinette™ dining table (NA 36Y), range cover, two sink covers, raised-panel refrigerator inserts, throw pillow(s)
- 362-hp 3-valve Triton® V10 engine SEFI, TorqShift™ 5-speed automatic transmission w/tow/haul, 175-amp. alternator
- Hydraulic brakes w/ABS
- Trailer Hitch 6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
- 7-pin connector
- Stainless steel wheel liners w/19.5" tires (26HE, 31KE, 27N, 30T)
- Stylized aluminum wheels w/22.5" tires (35B, 35F, 36Y)
- Automatic hydraulic leveling jacks
Cab Conveniences
- Radio/Rearview Monitor System w/color camera, AM/FM stereo, CD player, 1-way audio, and LCD monitor (26HE, 31KE)
- Radio/Rearview Monitor System w/color camera, 6" touch screen, handheld remote, and iPod®/MP3 input (NA 26HE, 31KE)
- Cab seats adjustable armrests, lumbar support, and multi-adjustable slide/recline/swivel
- 3-point seat belts
- Chassis/house battery radio power switch
- Power steering w/tilt wheel
- Exterior power mirrors w/defrost
- Cab wraparound curtain
- Cruise control
- 12-volt powerpoints
- Map light(s)
- Sunvisors
- Dash workstation w/USB and 12-volt powerpoint (NA 26HE, 31KE)
Options
- Sideview video camera system w/color monitor (NA 26HE, 31KE)
- 6-way power driver seat (NA 26HE, 31KE)
- Passenger seat w/footrest (NA 26HE, 31KE)
- Dual-speed defroster fans (NA 26HE, 31KE)
- SiriusXM™ satellite radio receiver, remote, iPod® interface cable/connector (subscription not included) (NA 26HE, 31KE)
Interior
- 32" HDTV (26HE, 31KE, 30T)
- 39" HDTV (35F)
- 46" HDTV (27N, 35B)
- Amplified digital TV antenna system
- Dining table/buffet/chairs w/retractable 39" HDTV (36Y)
- Satellite system ready (NA 26HE, 31KE)
- MCD solar/blackout roller shades (lounge, dinette, bedroom) (MCD blackout roller shades 26HE, 31KE)
- OnePlace® systems monitor
- Powered ventilator fan (lounge, non-power 26HE, 31KE)
- Powered ventilator roof vent (27N bedroom)
- Powered roof vent (bath)
- Tinted windows
- Dual-pane windows (NA 26HE, 31KE)
- LED lights (NA 26HE, 31KE)
- Electric fireplace (35F)
- Washer/dryer prep (36Y)
- StudioLoft™ (manual) (NA 36Y)
- StudioLoft (powered w/ladder)
- Dining table/buffet/chairs w/retractable 39" HDTV (30T)
- 32" HDTV (front) (27N, 35B)
- 40" HDTV (35F)
- 48" HDTV (27N, 35B)
- Washer and dryer (36Y)
- Vinyl flooring throughout (excludes cab and slideroom floor) (27N, 30T, 35B, 35F, 36Y)
Galley
- Corian® countertops (NA 26HE, 31KE)
- Laminate countertops (26HE, 31KE)
- 2-door refrigerator/freezer (NA 36Y)
- 2-door refrigerator/freezer w/icemaker (36Y)
- Microwave oven (26HE, 31KE, 30T)
- Microwave oven w/range fan (27N, 35B, 35F, 36Y)
- 3-burner range w/oven (26HE, 31KE)
- 3-burner range top w/storage below (27N, 30T, 35B, 35F, 36Y)
- 3-burner range w/oven (27N, 30T, 35B, 35F, 36Y)
- Microwave/convection oven (30T)
- Microwave/convection oven w/range fan (27N, 35B, 35F, 36Y)
- 4-door refrigerator/freezer w/icemaker (35B, 35F, 36Y)
Bath
- Laminate countertop
- Flexible showerhead
- Textured glass shower door
- Skylight
- Toilet w/foot pedal (26HE, 31KE)
- Porcelain toilet w/foot pedal and sprayer (NA 26HE, 31KE)
- Queen bed w/storage below
- Bedspread (26HE, 31KE)
- Bedspread, pillows and shams (27N, 30T, 35B, 35F, 36Y)
- Headboard (NA 30T)
- Bunk beds w/foam mattresses, mattress covers, and privacy curtains (35B)
- 28" HDTV (36Y)
- Queen innerspring mattress (27N, 30T, 35B, 35F, 36Y)
- Queen foam mattress (26HE, 31KE)
Optional
- 2 DVD players w/10.1" LCD monitors and headphones (35B bunk beds)
- 22" HDTV w/cable wall input (27N, 30T)
- 28" HDTV (35B)
- 32" HDTV (35F)
- King bed w/innerspring mattress, pillows and shams (36Y)
Exterior
- Premium high-gloss sidewall skin
- Automatic entrance door steps
- Powered patio awning
- Front mud flaps
- Porch light
- LED lighted storage compartments (in select compartments)
- Ladder (NA 26HE, 31KE)
- Lower front protective mask (w/full-body paint only)
- Entertainment Center AM/FM stereo, CD player, remote, AC duplex, DC receptacle, removable TV table, speakers and lockable compartment (30T)
- Entertainment Center 32" HDTV w/remote, AM/FM stereo w/DVD player w/remote, speakers (27N, 35B, 35F)
- Entertainment Center 32" HDTV w/remote (36Y)
Heating & Cooling System
- 14,800 BTU air conditioner (26HE, 31KE, 27N, 30T)
- 2 high-efficiency air conditioners w/Energy Management System (35B, 35F, 36Y)
- 30,000 BTU low-profile furnace (26HE, 31KE, 27N, 30T)
- 40,000 BTU low-profile furnace (35B, 35F, 36Y)
Optional
- Air conditioner heat pump (27N, 30T)
- 2 high-efficiency air conditioner heat pumps (35B, 35F, 36Y)
- All-Weather Upgrade Package (30T) 5,500-watt Cummins Onan® Marquis Gold™ gas generator, 2nd high efficiency A/C with heat pumps, 50-amp. power cord, automatic changeover switch, shoreline/generator
Electrical System
- AC/DC load center, 45-amp. converter/charger (26HE, 31KE, 27N, 30T)
- AC/DC electrical distribution system, 45-amp. converter/charger (35B, 35F)
- AC/DC electrical distribution system, 55-amp. converter/charger (36Y)
- 30-amp. power cord (26HE, 31KE, 27N, 30T)
- 50-amp. power cord, shoreline/generator automatic changeover switch (35B, 35F, 36Y)
- PowerLine® Energy Management System (27N, 35B, 35F, 36Y)
- 4,000-watt Cummins Onan MicroQuiet™ gas generator (26HE, 31KE, 27N, 30T)
- 5,500-watt Cummins Onan Marquis Gold gas generator (35B, 35F, 36Y)
- 2 deep-cycle Group 24 batteries (NA 36Y)
- 4 deep-cycle Group 31 batteries w/residential refrigerator (36Y)
- Battery disconnect system (chassis) (NA 26HE, 31KE)
- Battery disconnect system (coach)
- Automatic dual-battery charge control
- Auxiliary start circuit
- AC duplex receptacle
- 2,000-watt AC/DC inverter w/remote panel (36Y)
- Cable TV input
- Portable satellite dish hookup, power cord
- Automatic generator start system (36Y)
Optional
- 1,000-watt AC/DC inverter w/remote panel (NA 26HE, 31KE, 36Y)
- 2 deep-cycle Group 31 batteries w/4-door refrigerator/freezer w/icemaker (35B, 35F, 36Y)
Plumbing System
- Service Center colored labels, pressurized city water hookup w/diverter valve, drainage valves, exterior wash station w/lighted pump switch (NA 26HE, 31KE), 10' sewer hose
- 6-gallon LP water heater w/electronic ignition (26HE, 31KE)
- 6-gallon 110-volt/LP water heater w/motoraid (27N, 30T, 35B, 35F)
- 10-gallon 110-volt/LP water heater w/motoraid (36Y)
- Heated holding tank compartment
- Permanent-mount LP tank w/gauge
- On-demand water pump
- TrueLevel™ holding tank monitoring system
- Winterization Package water heater bypass valve and siphon tube
- LPG accessory connection (patio area) (NA 26HE, 31KE)
- Gravity tank fill w/lockable door (NA 26HE, 31KE)
- Holding tank flushing system (black tank only) (NA 26HE, 31KE)
- Child seat tether anchor (forward facing dinette seat) (NA 36Y)
- LP, smoke, and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
- High-mount brake lamp
All standard features and specifications are subject to change.
